特征：
● 圆周振荡，混匀直径5.5mm
● 固定转速3000rpm
特征：
● 圆周振荡，混匀直径5.5mm
● 固定转速3000rpm
产品型号 | UFO |
振荡方式 | 圆周 |
混匀直径[mm] | 5.5 |
运行模式 | 点动 |
转速[rpm] | 3000 |
电压[VAC] | 100-240 |
频率[Hz] | 50-60 |
输出电压[VDC] | 12 |
输出功率[W] | 7.2 |
DIN EN60529保护级别 | IP42 |
允许相对湿度[%] | 80 |
允许环境温度[°C] | 5-40 |
重量[kg] | 0.55 |

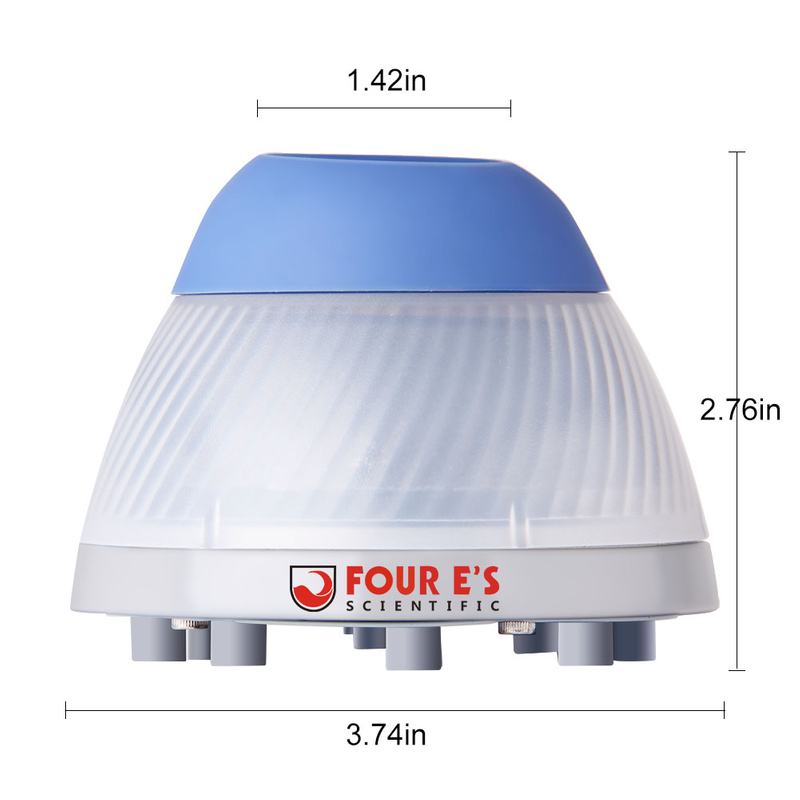

外形尺寸[Φ x H,mm] | 100x78 |
货号 | MI0101001 |
产品型号 | UFO |
振荡方式 | 圆周 |
混匀直径[mm] | 5.5 |
运行模式 | 点动 |
转速[rpm] | 3000 |
电压[VAC] | 100-240 |
频率[Hz] | 50-60 |
输出电压[VDC] | 12 |
输出功率[W] | 7.2 |
DIN EN60529保护级别 | IP42 |
允许相对湿度[%] | 80 |
允许环境温度[°C] | 5-40 |
重量[kg] | 0.55 |
外形尺寸[Φ x H,mm] | 100x78 |
货号 | MI0101001 |
